UVZ780 Retrofit Kit for MMG, TMG & SGU 110v Satronic Controls

The KLC11 conversion kit has been specially composed for the simple replacement of
an existing UVZ 780 UV cell and includes a KLC11/230 RA compact UV flame detector
approved to EN298 for direct connection to the existing burner control box. A connection
cable, moun-ting flanges and detailed conversion instructions are included for easy
installation of the KLC11/230 RA flame detector.

The KLC 11 is a compact UV flame detector designed for single flame combustion and produces
little light or radiation in the visible spectrum and has a very low flame modulation /
flicker frequency. The design of the UV sensor ensures that the flame detector does not react
to background radiation from hot refractory or any other infrared light source.

The UV flame detector is equipped with an optical interface that visibly indicates the intensity
of the flame signal. The KLC 11 can be connected directly to the ionisation input of the burner
control box. The plug-in solution means that the flame detector can be easily replaced.

The internal increase in UV tube voltage immediately after the supply voltage is applied ensures
the safety requirements of EN 298 for testing the UV tube for self-ignition.

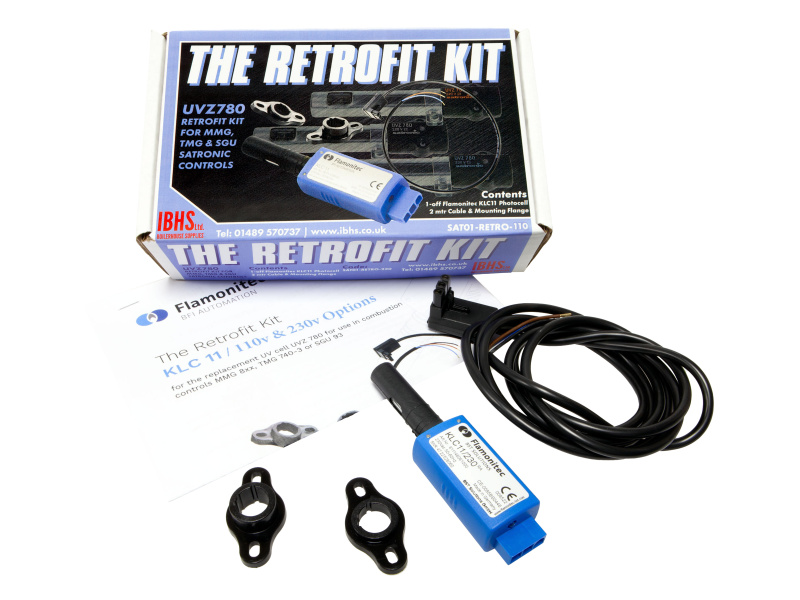

Includes

• 1-off Flamonitec KLC11 Photocell
• 2 mtr Cable & Mounting Flange
• 1 Data Sheet

This replaces Satronic UVZ780 Blue, Red & White Photocell.
