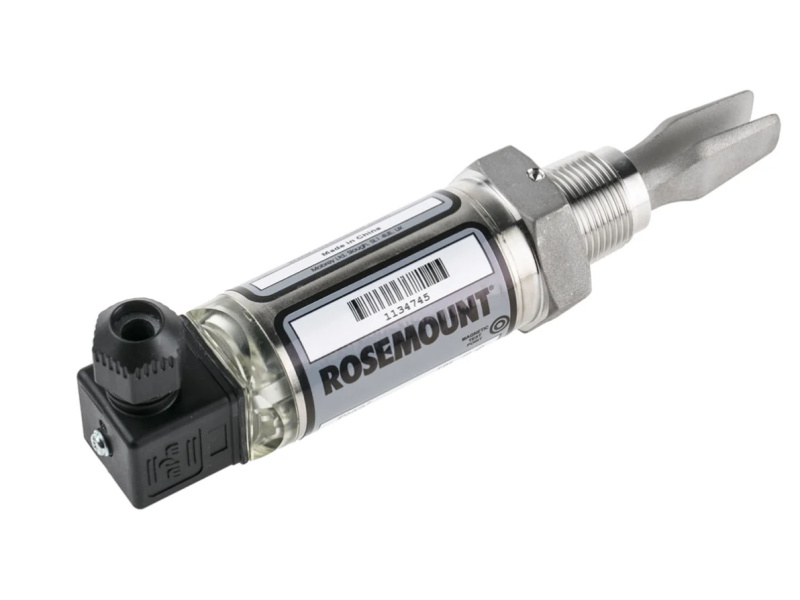

Rosemount 2110 Mini Squing

3/4" BSPT

The Rosemount Liquid Level Switch (previously Mini-SQUING) operates based on the tuning fork principle. A piezoelectric crystal vibrates the forks at their natural frequency. This frequency shifts depending on the density of the medium surrounding the fork—the denser the liquid, the lower the frequency. As a low-level alarm, the fork detects a frequency change when the liquid level drops below it, prompting the electronics to switch the output state. As a high-level alarm, the fork detects a frequency change when rising liquid makes contact, causing the output state to switch accordingly.

Features

• Direct load switching with plug connection (2 wire) 21 to 264 Vac 50/60Hz, 21 to 264 Vdc
• Process connection size/type: 3/4" BSPT (R) thread
• Operating temperature range: -40°C to 150°C
• Rugged stainless steel body and fork, ideal for OEM applications
• Compact, lightweight design, perfect for small vessel or pipe installations
• Safe and easy electrical hookup
• Magnetic test point for simple functional testing
• 4-way plug connection with polarity insensitivity and short circuit protection
• Fast Drip fork design for quicker response time, especially with viscous liquids
• ’Heartbeat’ LED provides instant visual indication of operational status
• Hygienic connections available; fork shape optimized for hand polishing to meet hygienic requirements
• No moving parts or crevices, ensuring virtually no maintenance
• Magnetic test point for easy functional testing
• Threaded process connection: 3/4-in. BSPT (R) thread

Applications

• Overfill protection
• High and low level alarms
• Leak detection
• Run dry or pump protection
• Pump control or limit detection
• Hygienic applications

Certifications

• IP66/67 rated
• The industry standard DIN 43650 plug/socket is used for a fast connection
