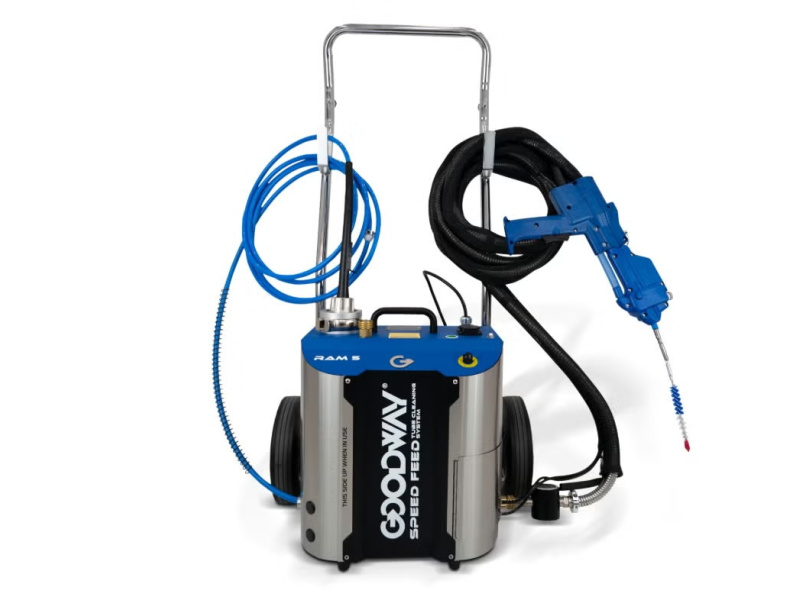

RAM 5 Rotary Tube Cleaner 110v 60 Hz DC C/W Trolley

Excl. VAT: £5,960.12
Incl. VAT: £7,152.14
Brand: Goodway
Product Code: G-RAM-5
Quantity:

The RAM-5 just got faster and easier to use with our latest innovation, the Reverse Stop Assembly Speed-Feed gun. The updated gun combines our speed-feed technology to fire the shaft quickly into the tube from a pull of the trigger with the new Reverse Stop Assembly that automatically detects when the brush is retracted from the tube and stops it in the optimal position.

Go from tube to tube with lightning speed and precision.

Plus, it allows you to dial in the optimal brush rotation speed and shaft feed rate for better cleaning of straight or enhanced tubes. And, its quick-connect shaft and brush connections provide fast and easy changes.

These innovative features, plus its integrated water flush combine to clean tubes up to 4X faster than other rotary tube cleaners.

With years of proven performance, a sleek modern design, industrial-strength construction, improved portability, intuitive controls, and unmatched speed, it's no wonder the RAM-5 is the choice for contractors and facility managers with large tube bundles.

For cleaning tubes 1/4" to 1" I.D.

Note: Shafts, brushes and other accessories sold separately.

Product Features

  • Larger wheels for improved mobility
  • Sleek, modern design
  • Intuitive easy-to-use controls
  • Variable speed up to 3' (0.9m) per second - reduced labor
  • Simple to operate - minimal training required
  • Stainless steel construction - long life
  • Interchangeable cleaning tools - versatile
  • Large wheels - easy to move
  • Simultaneous water flush - removes deposits
  • Trigger controlled operation - increased productivity
  • Flexible Shaft speed: Up to 862.5 rpm
  • Reverse Stop Assembly Speed-Feed Gun rate: Up to 3' (0.9m) per second
  • Reverse Stop Assembly Speed-Feed Gun push/pull force: 50 lbs (222 N)
  • Motor power: 1 HP (0.6 kW)
  • Input power: Standard: 12 amps, 115 V, 60 Hz AC (Optional: 12 amps, 115 V, 50 Hz; 6 amps, 230 V, 60 Hz; or 6 amps, 230 V, 50 Hz)
  • Dimensions: (excluding gun and guide hose): 37" (940mm) high x 20" (510mm) wide x 17" (430mm) deep ·
  • Weight: 75 lbs (34 kg) net dry
  • RAM-5 is CE certified
