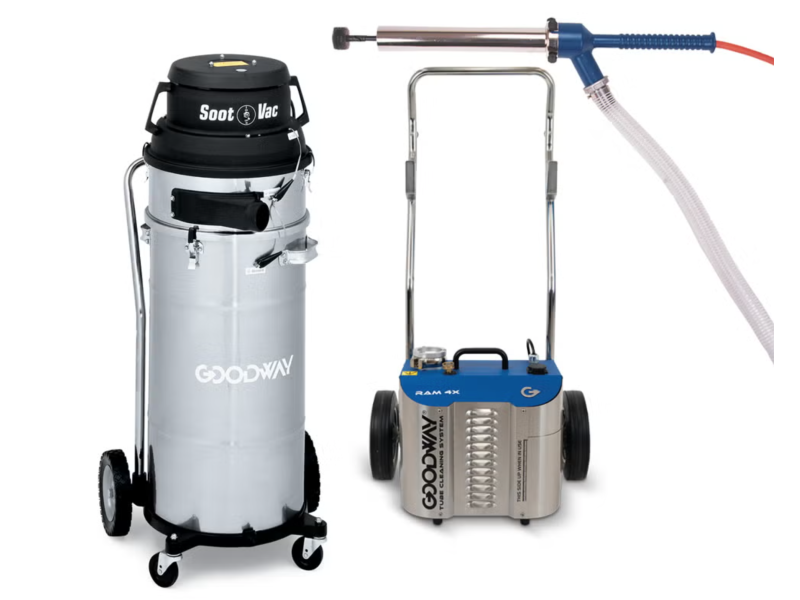

The RAM-4X Firetube Boiler Cleaning System features a full 1 HP (0.75 kW) drive motor. It uses a cleaning tool fitted to the end of a heavy-duty flexible shaft, combined with simultaneous vacuum extraction, to remove scale and other deposits from boiler tubes with an internal diameter of 1" (25.4 mm) and larger.

Kit Contents

• RAM-4X Firetube boiler cleaning system
• Mobile dolly
• Tool storage box
• Footswitch
• Dry pickup attachment
• 2" x 12' hose, 18" straight bayonet nozzle, 25' GTC-721G flexible shaft, spring-filled brush
• 2" x 12' hose, 18" straight bayonet nozzle, 25' GTC-721G flexible shaft, spring filled brush
• GTC-540 series vacuum 55 Gallon

Features

• Easy to operate – requires minimal training
• Durable stainless steel construction – long service life
• Interchangeable cleaning tools – adaptable for multiple tasks
• Large wheels – simple to transport
• Simultaneous vacuum – efficiently removes deposits
• Foot switch activation – ensures safe operation
• Flexible Shaft Speed: 1,725 rpm (can be reduced to 862.5 rpm with optional 2:1 pulley ratio for increased torque)
• Motor Power: 1 HP (0.75 kW)
• Input Power: 13 A, 115 V, 60 Hz AC (Optional: 6.5 A, 230 V, 60 Hz)
• Dimensions: 37" H x 20" W x 17" D (940 x 510 x 430 mm)
• Weight: 59 lbs (27 kg) net dry
