Portable EC/TDS meter high range

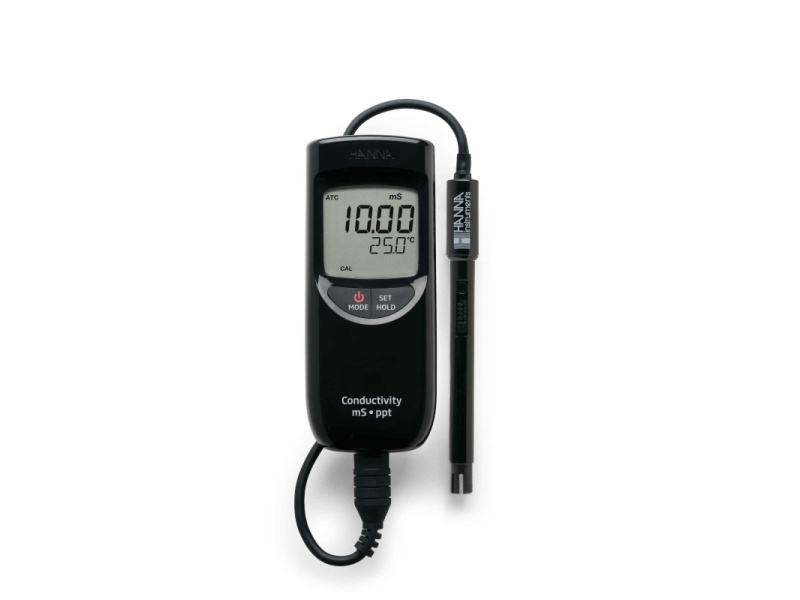

Hanna Instruments HI-99301 Portable EC/TDS/Temperature Meter — High Range
The Hanna Instruments HI-99301 is a portable, IP67-rated EC/TDS/temperature meter measuring high range conductivity in mS/cm and TDS in ppt, making it the ideal companion to the HI-99300 where higher conductivity and dissolved solids levels are encountered. The updated instrument features a larger, user-friendly LCD, on-screen tutorial messages for calibration and setup, a missing probe indicator, a rugged ergonomic casing, faster battery replacement and a bottom-mounted probe connection that keeps the electrode cable clear of the work area. The large multi-level LCD displays the primary reading, temperature and calibration guides simultaneously.
Single point automatic calibration with automatically temperature compensated measurements is standard, and both the EC/TDS conversion factor (0.45 to 1.00) and temperature compensation coefficient (0.0 to 2.4%/°C) are user-selectable. The BEPS Battery Error Prevention System alerts the user if low battery power could adversely affect readings, and battery percentage is shown on start-up. Each meter is supplied complete with the HI-763063 EC/TDS/temperature probe, calibration solution sachets, a 100ml beaker, batteries, a rugged carrying case, and calibration certificates for both meter and probe.
Key Features
- High range EC (0 to 20.00 mS/cm) and TDS (0.00 to 10.00 ppt) measurement
- IP67 rated housing
- Large multi-level LCD — EC/TDS, temperature and calibration guides displayed simultaneously
- Bottom-mounted probe connection — keeps cable clear during use
- Automatic single point calibration with on-screen tutorial messages
- Automatic temperature compensation — β selectable 0.0 to 2.4%/°C
- User-selectable TDS conversion factor (0.45 to 1.00) in 0.01 increments
- Battery percentage displayed on start-up; low battery symbol warning
- User-selectable auto-off after 8 minutes, 60 minutes or disabled
- HI-763063 probe resists clogging and is easy to clean
- Approx. 500 hours continuous use from 3 x AAA batteries
- Supplied complete with probe, calibration solutions, beaker, carrying case and calibration certificates
Typical Applications
- Boiler water monitoring
- Waste water testing
Product Specifications
| Model | HI-99301 |
|---|---|
| EC Range | 0 to 20.00 mS/cm |
| EC Resolution | 0.01 mS/cm |
| TDS Range | 0.00 to 10.00 ppt (g/L) |
| TDS Resolution | 0.01 ppt (g/L) |
| EC/TDS Accuracy @ 20°C | ±2% F.S. |
| EC/TDS Calibration | Automatic, 1 point at 12.88 mS/cm or 6.44 ppt (CONV 0.5) or 9.02 ppt (CONV 0.7) |
| TDS Conversion Factor | Selectable 0.45 to 1.00 in 0.01 increments |
| Temperature Range | –5.0 to 105.0°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy @ 20°C | ±0.5°C |
| Temperature Compensation | Automatic, β selectable 0.0–2.4%/°C in 0.1 increments |
| Probe | HI-763063 EC/TDS/temperature sensor, DIN connector, 1m cable (included) |
| Battery Type / Life | 3 x 1.5V AAA — approx. 500 hours continuous use |
| Auto-off | User selectable — after 8 minutes, 60 minutes or disabled |
| Case Protection Rating | IP67 |
| Operating Environment | 0 to 50°C; RH max 100% |
| Dimensions | 154 x 63 x 30 mm |
| Weight | 196g (with batteries) |
| Supplied With | HI-763063 EC/TDS/temperature probe with DIN connector and 1m cable, HI-70030 12880 µS/cm calibration sachet (x1), HI-70038 6.44 ppt calibration sachet (x1), 100ml beaker, 3 x AAA batteries, rugged carrying case, meter calibration certificate, probe calibration certificate, instruction manual |
| Datasheets | |
|---|---|
 | HI99301 Manual.pdf |
