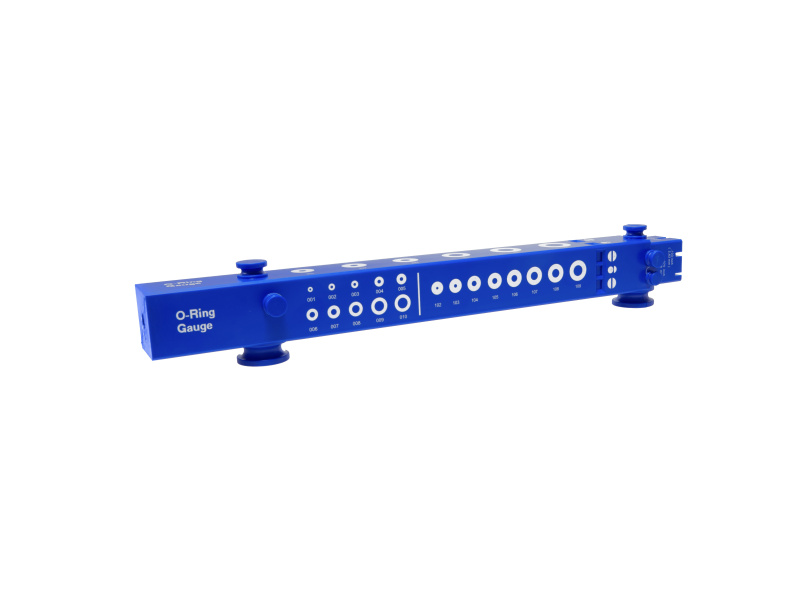

O Ring Gauge

Imperial

For identifying size dash number of standard AS-568 Series O-Rings
The O-Ring Gauge, an essential tool designed to assist maintenance personnel in selecting, sizing, and measuring O-Rings with ease. Primarily used for determining the dimensions of AS-568 O-Rings, the Gauge functions as a comprehensive O-Ring size chart.

Features

• Nationally recognized
• Precision measurement
• Imperial scales (inch) for versatile applications
• Easily identifiable sizes using slots at the top of the gauge
• Easy-to-use telescoping slide
• Lightweight and portable
• Robust and long-lasting
• Made from high-quality plastic material

How to use the O-Ring Gauge

1. Identify section size by fitting O-Ring in slots at top of the slide.

2. Place the O-Ring around both halves of split spindle directly below the correct slot.
(O-Rings too small to be mounted on the spindle may be matched with silhouettes)

3. Extend the slide until the O-Ring is taut, but not too stretched.
(For O-Rings too large for this mount them around the split and solid spindles.)

4. Read the AS-568 Size number in the window below marking for spindles used.
