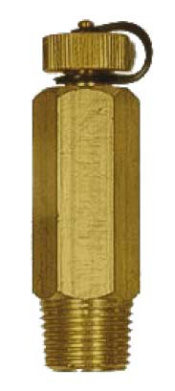

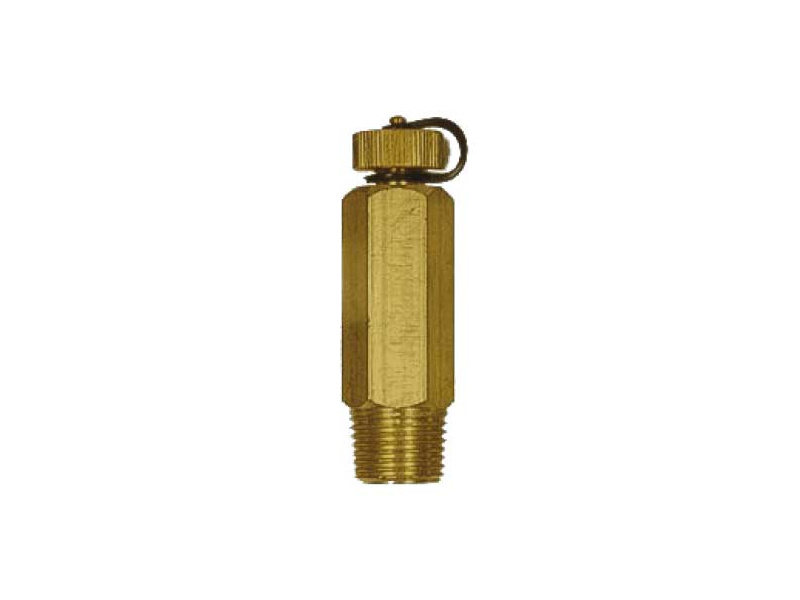

8mm (1/4") BSPT Test Plug in Brass

Neoprene Seal - Extended

For Natural Gas

Test plugs allow pressure or temperature readings to be taken quickly and easily. They’re designed to eliminate the need for gauge cocks and thermometer walls. These test plugs have a wide range of applications. A popular example of their use includes hot and chilled water systems, heat exchangers, pumps and gas pipe work.

This enhanced Test Plug is the only pressure and temperature test plug with two self closing valves.

Operation

The Test Plug is permanently installed in the line at recommended test points. The cap protects the valve
and provides an additional seal. After the cap has been removed either a test thermometer or pressure
gauge adaptor can be inserted through the two self-closing valves. Tests should be made as quickly as
possible since the valve reseal time is dependent on the time of insertion.

Features

• Fitted with twin-core valves giving added safety.
• Can be used for pressure and temperature measurements.
• Easy to install.
• Cap retaining strap.
• Test Plugs are permanently installed in the line.

Technical Information
