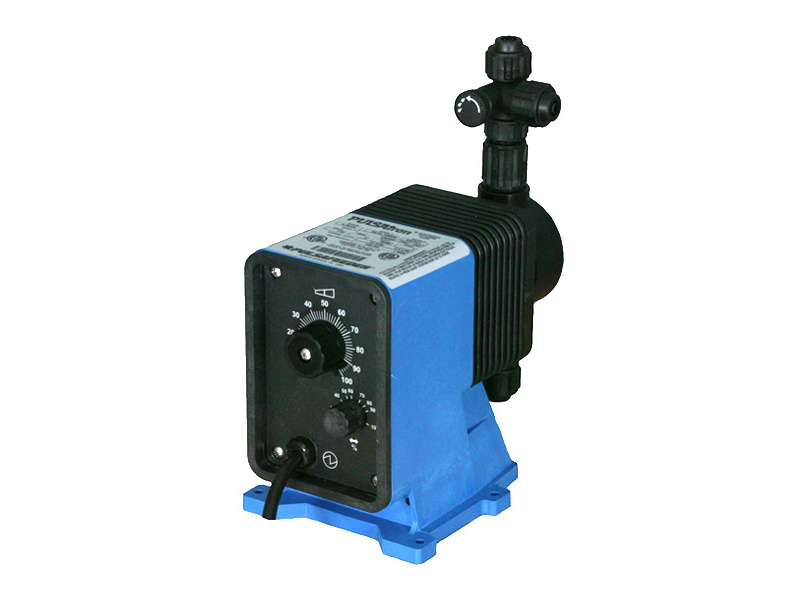

C+ Series Dosing Pump 4.7 Ltrs/Hr @ 5.6 Bar

FLOW
6 – 30 GPD( 0.90 – 4.7 LPH) 0.25 – 1.25 GPH

PRESSURE
80 PSI (5.5 BAR)

Pulsatron C+ Series Dosing Pump 4.7 Ltrs/Hr @ 5.6 BAR offers manual control over stroke length and stroke rate as standard. In practice, the pump will be actuated by a separate controller or by linking with another piece of equipment, e.g. a boiler feed pump or a cooling tower recirculating pump.

Similar to the Pulsatron Series C, the Series C Plus provides manual control over stroke length and stroke rate as standard features, with the added option for external pacing for automatic control. The key distinction lies in the pressure rating.

The metering performance is accurate to within +/- 3% of maximum capacity. The advanced design of the guided check valves ensures precise seating, excellent priming, and reliable suction life. Additionally, its timing circuit is exceptionally reliable and designed to resist temperature fluctuations, EMI, and other electrical disturbances.

Features

• Automatic control available with 4-20mADC direct or external pacing with stop function
• Manual control by on-line adjustable stroke rate and stroke length
• Auto-Off-manual switch
• Highly reliable timing circuit
• Circuit protection against voltage and current upsets
• Panel mounted fuse
• Solenoid protection by thermal overload with auto-reset
• Water resistant for outdoor and indoor applications
• Indicator lights panel mounted
• Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
• Safe and easy priming with durable leak-free bleed valve assembly (standard)
