MMG 810.1 Mod 43 240v Control Box
P.O.A |
|
| Brand: | Satronic |
| Product Code: | SAT25-018-MOD43 |
| Contact Us | |
OBSOLETE PRODUCT
Technical Data
| Supply Voltage | 220 / 240 V (-15... +10%) 50 Hz (50 - 60 Hz) |
|---|---|
| AC frequency variations | result in proportional timing deviations |
| Fuse Rating | max. 10 A rapid, 6 A slow |
| Power Consumption | 10 VA |
| Max. Current per Output | |
| term. 3 | 2A, cos ϕ 0.2 |
| term. 4, B | 2A, cos ϕ 0.4 |
| term. 5, 6, C | 1A, cos ϕ 0.4 |
| Total load | 5A, cos ϕ 0.4 |
| Amplifier sensitivity | 1 µA |
| Min. current from UV tube or ionisation probe | 5 µA |
| Flame detector cable | max. 20 m cable length |
| Air proving switch | 1 terminal 4 A, 230 V |
| Reset Delay | none |
| Flame Detector | |
| Ionisation probe | - |
| Infra-red flicker detector | IRD 1020 |
| UV tube type | UVZ 780 red markings installed radially or axially |
| Infra red flare detector | IRD 1020 |
| Weight incl. base | 350g |
| Mounting attitude | any |
| Insulation standard | IP44 |
| Permissable ambient temperature | -20° C... +60° C |
| Classified acc. to EN 298 | BTLLXN |

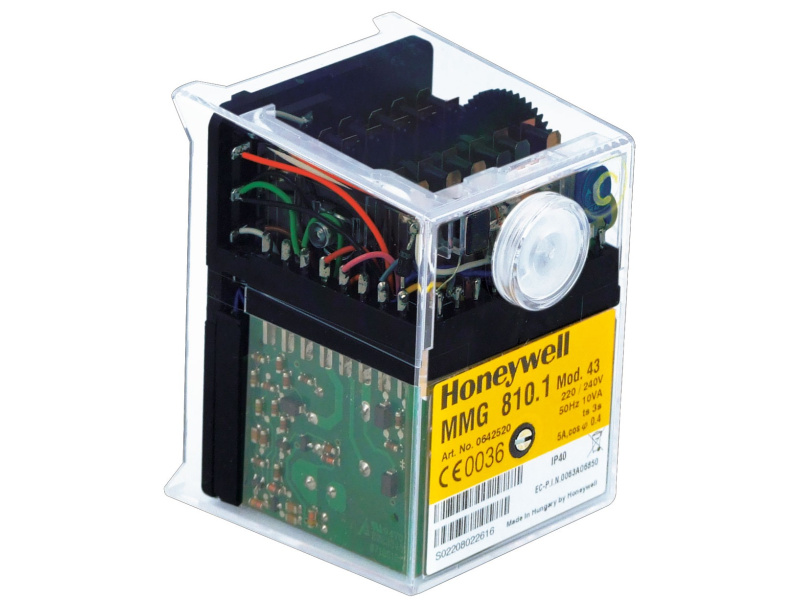

MMG 810.1 Mod 43 240v Control Box
Burner Control Box
For 2 stage forced draught and combi oil/gas burners.
- Suitable Flame Detectors :
- Ionisation probe
- UV Sensor
- Infra-red flicker detector
The MMG burner control box is capable of controlling and monitoring forced draught and combi oil/gas burners of any nominal rating (tested and approved as per EN 298).
Different type and model designations identify the control boxes according to varying national standards, and to some extent, according to programme times.
MMG 810.1 Mod 43 Art. Nr. 0642520
| MMI 810.1 Mod 43 | Program Timing Seconds. | |
|---|---|---|
| Waiting time at start ca. | tw | 9 |
| Max. reaction time for air proving switch | tlw | 6 |
| Pre-purge time | tv1 | 40 |
| Pre-ignition time | tvz | 3 |
| T. ignition time | tz | 6 |
| Safety time | ts | 3 |
| Time delay term.6/term.C | tv2 | 10 |
| Datasheets | |
|---|---|
 | MMG_810-1_811-1.pdf |
