Flow Switch F61SB-9100

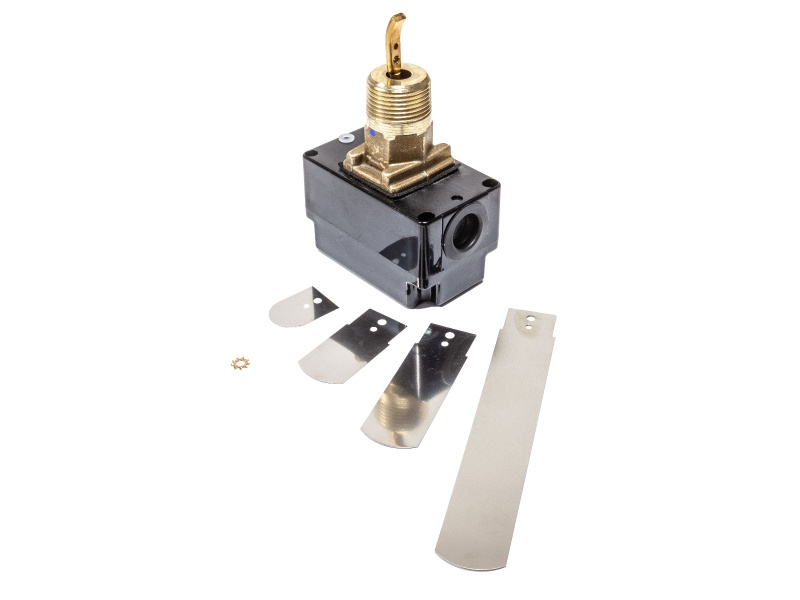

Johnson Flow Switch F61SB-9100
The F61 liquid flow switch can be used in liquid lines carrying water, sea water, swimming pool water, ethylene glycol or other liquids not harmful to the specified materials.
Featuring SPDT contacts and can be wired to energise one device and de-energise another when liquid flow either exceeds or drops below the set flow rate. Pipe insert models and the T-body types for low-flow applications are available.
The IP43 version can be used for liquid temperatures above dewpoint (for use in other environments see the Product Data Sheet).
Typical applications are to shut down the compressor on liquid chiller systems, to prove flow on electric immersion heaters and to give a signal or alarm when the pump on condenser cooling system shuts down.
- Features
- Range 0,15 dm³/s - 46 dm³/s
- Connection R1 DIN2999 (ISO R7)
- Switch action SPDT Contacts, 15 A 230 V
- T-body and Pipe-insert types available
- Polycarbonate IP43 enclosure
- Vapour tight IP 67 enclosure
- Stainless steel Pipe-insert type
- Large wiring space
- Range screw easy accessible
IP43 Details
Range | Fluid Temperature | Connection | Switch Action | Additional Features | |
---|---|---|---|---|---|
0,15 dm³/s - 46 dm³/s | 0 - 120°C | R1” DIN2999 | Branch Pipe Connection ISO R7 | SPDT Contacts, 15(8) amp 230 V~ | 3 paddles 1”, 2”, 3” 6" Included |
Johnson Flow Switch F61SB-9100
The F61 liquid flow switch can be used in liquid lines carrying water, sea water, swimming pool water, ethylene glycol or other liquids not harmful to the specified materials.
Featuring SPDT contacts and can be wired to energise one device and de-energise another when liquid flow either exceeds or drops below the set flow rate. Pipe insert models and the T-body types for low-flow applications are available.
The IP43 version can be used for liquid temperatures above dewpoint (for use in other environments see the Product Data Sheet).
Typical applications are to shut down the compressor on liquid chiller systems, to prove flow on electric immersion heaters and to give a signal or alarm when the pump on condenser cooling system shuts down.
- Features
- Range 0,15 dm³/s - 46 dm³/s
- Connection R1 DIN2999 (ISO R7)
- Switch action SPDT Contacts, 15 A 230 V
- T-body and Pipe-insert types available
- Polycarbonate IP43 enclosure
- Vapour tight IP 67 enclosure
- Stainless steel Pipe-insert type
- Large wiring space
- Range screw easy accessible
IP43 Details
Range | Fluid Temperature | Connection | Switch Action | Additional Features | |
---|---|---|---|---|---|
0,15 dm³/s - 46 dm³/s | 0 - 120°C | R1” DIN2999 | Branch Pipe Connection ISO R7 | SPDT Contacts, 15(8) amp 230 V~ | 3 paddles 1”, 2”, 3” 6" Included |
