S01DB/F68/4 Mobrey Magnetic Horizontal Float Switch
Switch Electrical Rating440V 5A (ac) 240V 2A (D.C. Resistive) 240V 2A (D.C. Inductive) |
---|
Switch Type1N.O + 1N.C |
Maximum Pressure18 Bar |
Maximum Operating Temperature210°C |
Specifications
Attribute | Value |
---|---|
Device Type | Liquid Level Switch |
Mounting Type | Side Mount |
Switch Output | SPST |
Body Material | Aluminium Bronze |
Maximum Operating Temperature | +210°C |
Maximum Current | 2 A dc, 3 A ac |
Maximum Pressure | 18bar |
Gasket Material | Non Asbestos Sheet |

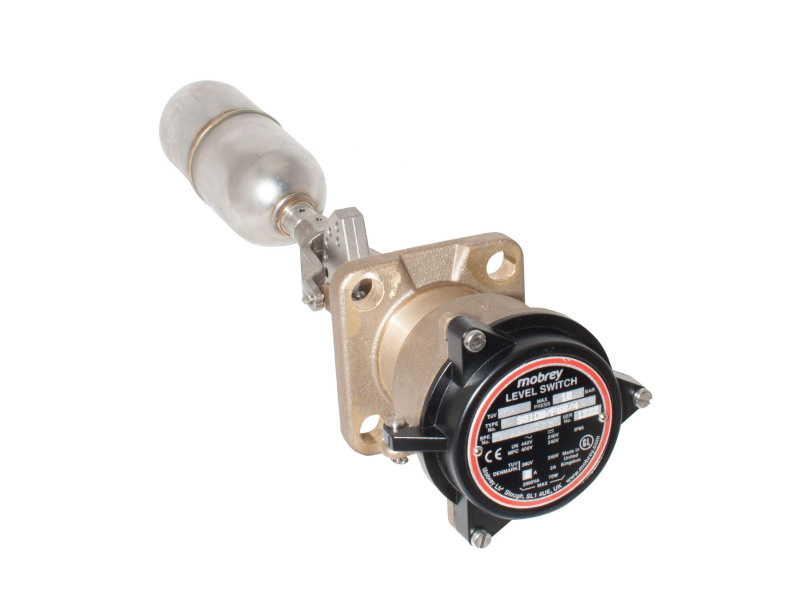

A side mounting magnetically activated liquid level switch, consisting of a one-piece cast aluminium bronze body and 316 stainless steel float with a long straight arm. It is ideal for use in industrial applications, including pump control and as a low or high level alarm.
- Tough, rugged design for long life in aggressive environments
- Operates in almost any liquid
- Variable differential to adjust switching point
- 2 off independent SPST voltage-free contacts (’snap action’) for alternative make and break circuits
- No contact ’hover’ or ’bounce’ for clean make or break
- Mobrey ’A’ flange for mounting
- M20 conduit entry with supplied cable gland (cable not supplied)
- Switch body rated to IP66 (when used with supplied cable gland)
- Marine approvals
