SLN150 Nickel Reinforced 1.5mm - 500mm x 1000mm
Typical Specifications (Typical values for 1.5mm thick material) | ||
---|---|---|
Compressibility ASTM F 36 A | 40% | |
Recovery ASTM F 36 A | 15% | |
Stress Relaxation DIN 52913 | 50MPa, 16h/300°C | min 48MPa |
Klinger cold/hot compression (50MPa) | Thickness decrease 23°C Decrease at 300°C |
40% 1.5% |
Gas Leakage according to DIN 3535/6 | <0.5ml/min | |
Chlorides (Soluble) | <40ppm | |
Fluoride and Chloride Content | <200ppm | |
Density of Graphite | 1.0g/cm³ | |
Purity | min 98% |

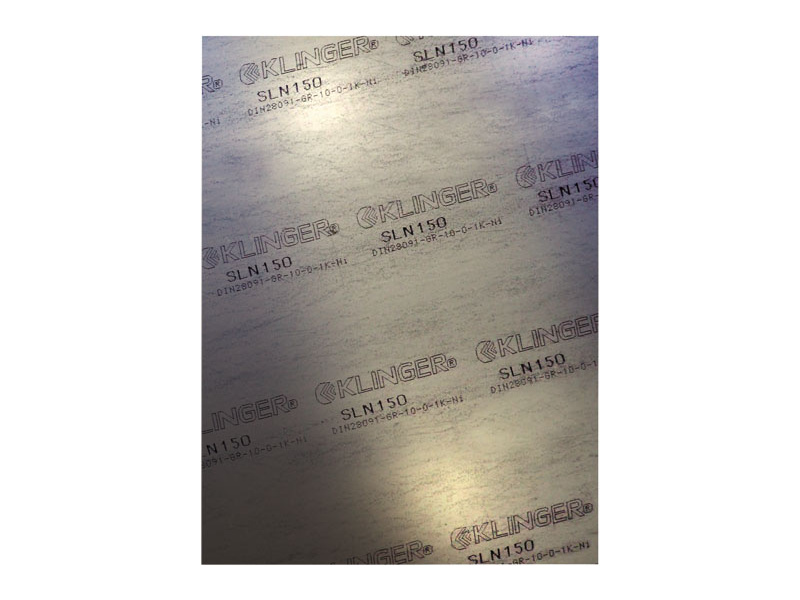

1.5mm Thick, 500mm x 500mm Sheet of Klinger SLN150 Nickel Reinforced Gasket Jointing
- Properties
- Max. Temperature : 500°C
- Max Pressure : 200 Bar
- Excellent resistance to steam
- Improved handling due to 0.013mm Nickel insert
- Resistant to virtually all media
- Outstanding resistance to high and low temperature
- High compressibility
- Good leakage properties
- Unlimited storage life
- Anti-stick finish on both sides
- Easy to cut
Datasheets |
---|
