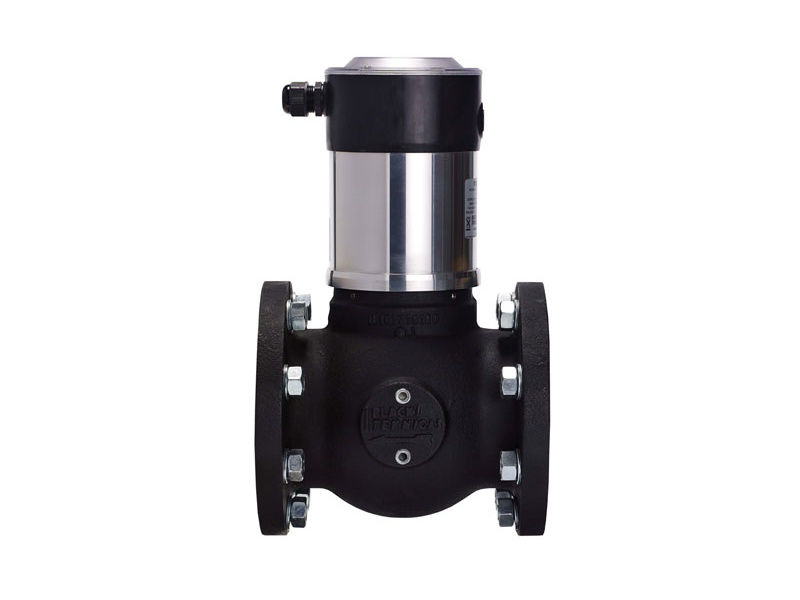

PE6689 150mm Flanged Powerseat Eco Gas Valve 230v 50 Hz
PE6689 150mm Flanged Powerseat Eco Gas Valve 230v 50 Hz
- Features
- Safety shut off valves for gas, air and oil
- EN161 approved; EC certificated
- Robust construction to IP56 equivalent
- Electro-hydraulic slow opening operation
- Closure in less than 1 second
- Open & closed position switch (volt free) as standard With the new Powerseat Eco range, all valves now feature integral manual reset switch as standard
- Red LED. ‘Power on’ indicator (if reset function is used)
- Green LED. ‘Valve open’ indicator
- Ultra high flow rate/connection size ratio
- Removable strainer for easy maintenance
- Suitable for vertical or horizontal mounting
- Plugged test points both sides of body
- Remote emergency stop switches available
- Remote thermal fuses available
- 20mm entry for cable or conduit entry
- Available in 110V and 230V 50/60Hz versions
- Energy saving feature (PE6683-PE6689 only)
- Flanged and screwed body connections
- Amber flashing LED. ‘Valve opening’ indicator (BC66810 & BC66811 model only)
- Membrane type control panel on actuator (BC66810 & BC66811 model only)
PE6689 150mm Flanged Powerseat Eco Gas Valve 230v 50 Hz
