100mm PN16 CPT Turbine Quantometer 13-250 m3/hr
Physical properties of the most popular gases that may be measured by CPT-01 Quantometer
Gas | Chemical symbol (formula) | Density [kg/m3] | Density related to air | Execution |
---|---|---|---|---|
Argon | Ar | 1,66 | 1,38 | Standard IIB |
Butane | C4H10 | 2,53 | 2,10 | Standard IIB |
Carbon dioxide | CO2 | 1,84 | 1,16 | Standard IIB |
Carbon monoxide | CO | 1,16 | 0,97 | Standard IIB |
Ethane | C2H6 | 1,27 | 1,06 | Standard IIB |
Ethylene | C2H4 | 1,17 | 0,98 | Standard IIB |
Helium | He | 0,17 | 0,14 | Standard IIB |
Methane | CH4 | 0,67 | 0,55 | Standard IIB |
Natural gas | - | 0,75 | 0,63 | Standard IIB |
Nitrogen | N2 | 1,16 | 0,97 | Standard IIB |
Propane | C3H8 | 1,87 | 1,56 | Standard IIB |
Acetylene | C2H2 | 1,09 | 0,91 | Special IIC |
Hydrogen | H2 | 0,08 | 0,07 | Special IIC |
Air | - | 1,2 | 1,00 | Standard IIB |

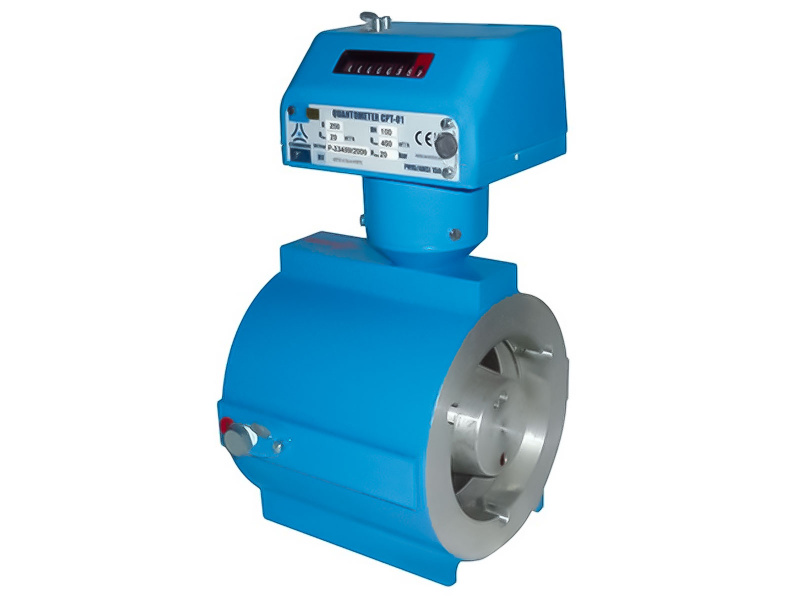

100mm PN16 CPT Turbine Quantometer
13-250 m3/hr
The Quantometer is a turbine meter based on the rotation of an impellor, the speed of rotation being proportional to the flow rate of the gas. The meters are constructed for installation between flanges like a "sandwich".
- Low Pressure Drop
- The index head can be rotated through 350 degrees.
- The gas enters the meter through a built-in-flow conditioner that increases the gas velocity.
- The gas continues along the flow channel and enters the measuring cartridge.
- The turbine rotors extract the maximum energy before the gas exits, expanding to minimise pressure losses.
- The basic components of the CPT Quantometer are as follows
(Please see Diagram in Gallery) - Pressure Resistant Meter Body
- Inlet Flow Straightener
- Measuring Cartridge with the Turbine Wheel
- Magnetic Coupling as the transferring element between measuring cartridge and the index head.
Pulse Rate
DN | G | Maximum Flow Qmax |
Pressure Loss at Q *max | Minimum Flow Qmin | LF Pulse Rate | HF1, HF2 Pulse Rate | HF Pulse Rate |
||
1:10 | 1:20 | 1:30 | |||||||
m3/h | mbar | m3/h | m3/h | m3/h | Pulse/m3 | Pulse/m3 | Pulse/m3 | ||
100 | 160 | 250 | 3,7 | - | 13 | 8 | 1 | 692 | 16780 |
Dimensions
DN | A | B | C | D | E | F | G | H | J | k* | L | Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | ||
100 | 150 | 100 | 29 | 53 | 185 | 100 | 225 | 305 | 105 | 8xM16 | 250 | 7,4 |
K* = The amount of stud bolts necessary for mounting the wafer-type quantometers
Datasheets |
---|
