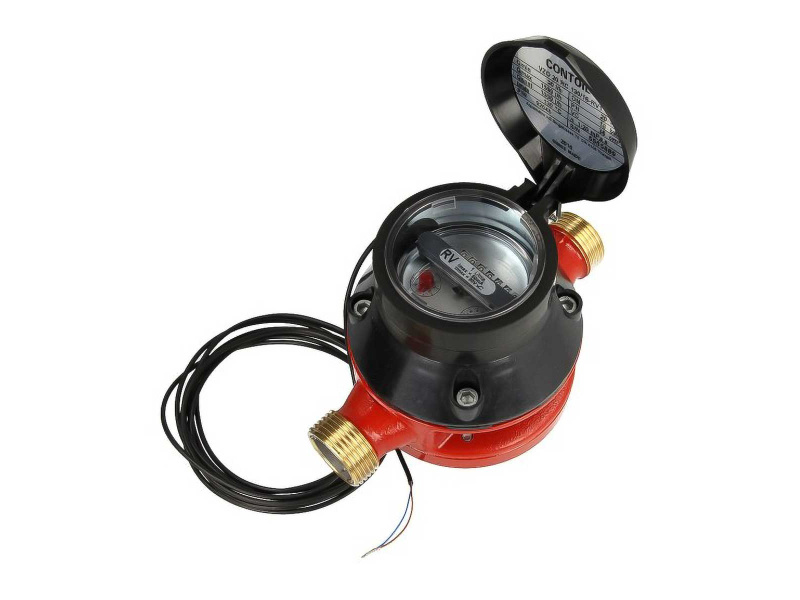

Oil Flow Meter Fig VZO 1" BSP Pulsed 130°C
Type | VZO 25 | ||
---|---|---|---|
Nominal Diameter | DN | mm inch |
25 1 |
Installation length | mm | 190 | |
Nominal Pressure with threaded ends | PN | Bar | |
Maximum Temperature | Tmax | °C | |
Maximum flow rate | Qmax3 | l/h | 3000 |
Nominal flow rate | Qcont3 | l/h | 2000 |
Minimal flow rate | Qmin | l/h | 75 |
Approx. starting flow rate | l/h | 30 | |
Max. permissible error | |||
Repeatability | |||
Safety filter mesh size | mm | 0.400 | |
Dirt filter mesh size | mm | 0.400 | |
Volume of the measuring chamber | approx. cm3 | 100 | |
Housing finish | enamelled red RAL 3013 | ||
Weight with threaded ends | approx kg | 4.2 | |
Smallest readable amount | | | 0.1 | |
Registration capacity | m3 | 10,000 | |
Registration time at Qcont until overrunning to zero | h | 5000 |
Oil Flow Meter Fig VZO 1" BSP
Pulsed
130°C
The Aquametro VZO (Male Thread Union Connections [In-Line]) screwed oil flow meters provide an accurate, reliable and economical way of obtaining all the information a user needs to control oil usage and energy costs. The oil flow meters handle a wide range of viscosity's for a variety of applications including checking and totalising fuel for burners, furnaces and diesel engines recording draw off from storage tanks and recording general usage.
- Features
- Volume display on roller counter, in litres
- Fuel oil meter with threaded or flanged ends
- For horizontal, vertical or inclined mounting
- Accuracy of ±1% of reading with a repeatability of ±2%
- Durable tamper resistant construction
- Optional pulse output facility
- All suitable for light and medium grade heating oil and diesel oil. ¾"-2" for heavy grade oil
- Maximum temperature 60°C to ¼" 130°C to 2" horizontal and vertical pipes.
Pressure & Temperature
Pressure Range:
Fig VZO up to 16 Bar
Temperature Range:
Fig VZO up to 130°C
