Clearflow CF210 Titan Power Flushing Pump Kit 240v
Application | Domestic and small commercial heating systems |
---|---|
Flushing Capability | 60 radiators max; 3 storeys |
Tank Capacity | 125l translucent HDPE |
Electric Motor Size | 1.1 kW, IP55 rating, 230V |
Max. Flow Rate | <170 l/m |
Max. Head | 28m |
Max. Temperature | 75°C |
Flow Reverser Type | instantaneous |
Control Valves | 3-port combination valves for isolation and dumping |
Flow and Return Hoses | 2 x 5m hoses, 22 mm I.D. |
Hose End Fittings | 1” BSP x 22mm brass hose couplings |
Dump Hoses | 1 x 8m, 22mm I.D. |
Water Inlet Hose | 1 x 8m |
Overflow Hose | 1 x 3m, 22mm I.D. |
Other Hoses Supplied | 2 x adapter hoses for connection to 1.5” circulator pump fittings. |
Carrying / Transport | Integral handle; 200 mm wheels. |
Weight (Without Hoses) | 28.5 kg |
Chemical Handling Ability | All commercially available acids, alkaline solutions, chlorine solutions. |
Dimensions | 530 x 680 x 890 |
Also included is a starter pack of flushing chemicals, inhibitor and pH test strips, sufficient for 2+ power flushing jobs. A 10 part set of BSP adaptors, comprehensive operations manual and a waterproof plastic hose set carry container.
What's in the kit?
- Hoses and fittings ready assembled
- Flow and return hose: 2 x 5 metre
- Dump hose: 1 x 8 metre
- Water inlet hose: 1 x 8 metre
- Overflow hose: 1 x 3 metre
- Circulator pump adaptor hoses x 2
- Starter pack of chemicals for 2+ jobs
- Power Flush FX2: 2 x 2.5 litres
- Systemsafe-DM corrosion inhibitor: 2 x 1 litre
- Neutralising Crystals: 2 x one shot tubes
- Hyper-Flush non-acidic cleaner: 1 x 1 litre
- pH paper (5 metre roll)
- Instruction manual
- Hose carry container
For Product information please see the individual product pages
Power flushing is the most effective method of cleaning existing heating systems, especially those containing large quantities of corrosion debris.
- Applications include:
- Power flushing heating and cooling systems.
- Flushing ground source heat pump coils.
- Descaling commercial and industrial boilers.
- Descaling steam generators and water heaters.
- Descaling calorifiers, condensers and chillers.
- Descaling cooling coils and water cooled rollers.
- Descaling plate and shell type heat exchangers.

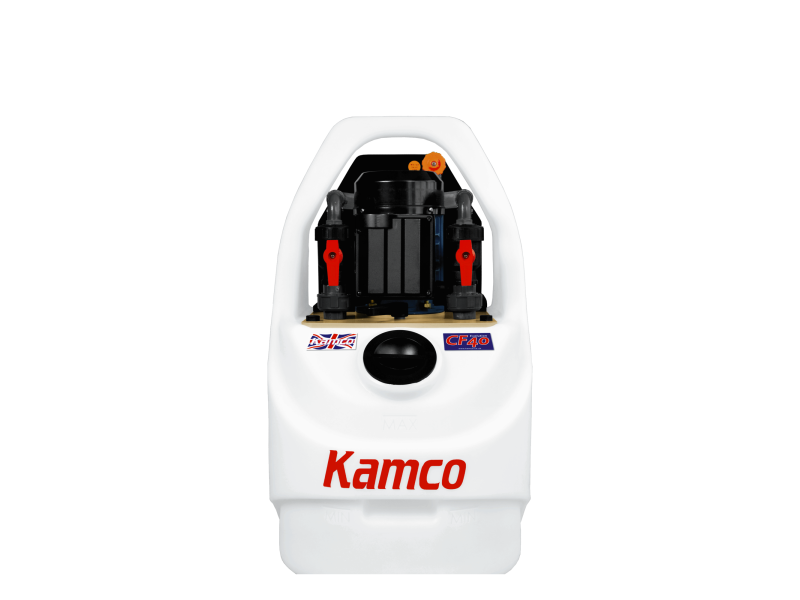

Kamco's top level power flushing pump engineered to deal with large flushing jobs, and descaling commercial and industrial boilers. Will power flush heating systems of up to 60 radiators over 3 storeys.
Datasheets |
---|
