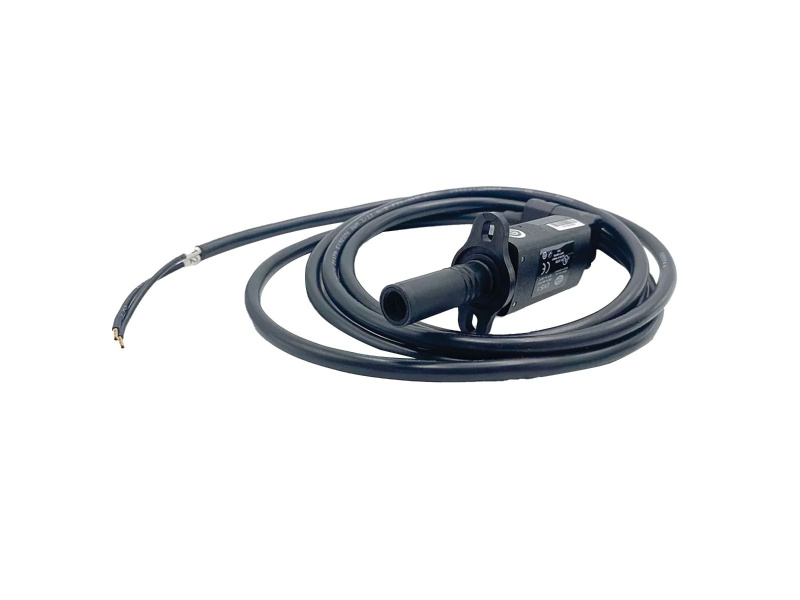

UV5-1 Fireye Photocell 6ft Lead Side View
6ft Lead Side View
The UV5-1 scanner is used with the BurnerPRO, MBCE, and other systems. It comes with a 6.5ft UL-rated cable for easy installation. The scanner is shipped with a mounting flange and a detachable cable.
The UV tube is made of quartz and is filled with a gas that ionizes when struck by UV radiation from the flame. In the absence of UV radiation, the gas acts as an insulator between two electrodes which are mounted inside the tube. These electrodes are energized continuously by a high voltage. During combustion, UV radiation ionizes the gas, causing current pulses to flow between the electrodes. These current pulses result in a flame signal which is transmitted to the amplifier in the control, where it is processed to energize or hold in the flame relay.
Application
The UV scanner is ideally suited for gaseous fuels (natural gas & propane). However, it can be used in detecting flames from standard fuel gases, some waste gases and light oil fuels such as No. 2 oil. Flames from heavier oils can be detected with UV scanners but the unburned fuel shroud and/or atomization shroud can block the passage of the UV from the flame zone to the UV tube, causing nuisance burner/boiler trips. Infrared detection is recommended for fuel oil heavier than No. 2, and some installations where waste gases are burned together with natural gas as a main flame.
Operating Voltage and Temperature
Model | Operating Voltage (S1-S2) | Operating Temperature |
---|---|---|
UV5 | 300 VDC nominal | -20°C to +60°C (-4°F to +140°F) |
