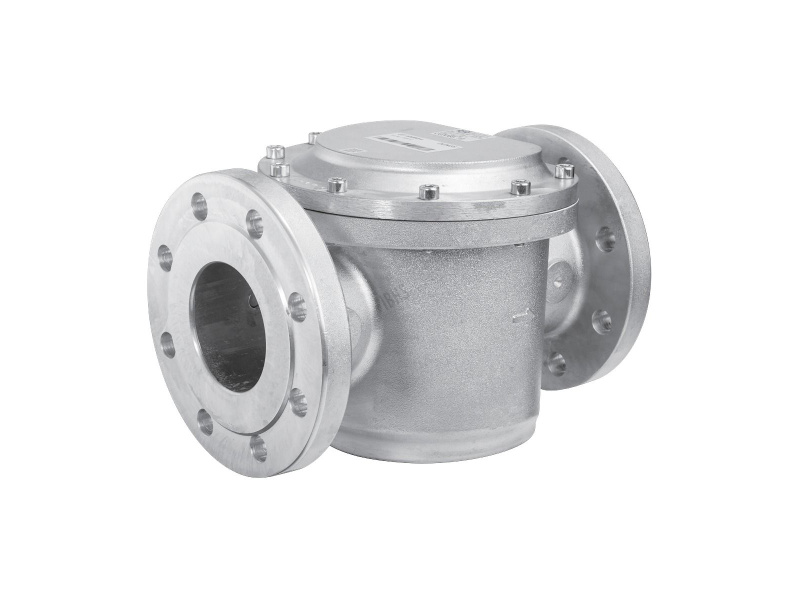

125mm Flanged PN16 Gas Filter 6 Bar Max Operating Pressure
125mm Flanged PN16 Gas Filter 6 Bar Max Operating Pressure
Technical description
Filter for interior gas lines, acc. DIN 3386
(max 6 bar) with high dust storage
capacity.
Flanged Connection
GF/3: acc. DIN EN 1092-1
Application
Type GF, GF/3, GF/4 gas and air
filter for protecting downstream
fittings. Filter suitable for gases of families
1, 2, 3 and other neutral gaseous
media. Up to max. 0,1 % H2S, 100 %
H2 tested.
Approvals
EU type testing certificate as per:
• EU-Gas Appliances Regulation
• EU-Pressure Equipment Directive
Specifications
Specification | GF Flanged Version |
---|---|
Nominal Diameter | DN125 (DIN EN 1092-1) |
Max. Operating Pressure | GF 60.../3 6 BAR (600 KpA) |
Max. Flow Velocity | ≤ 20 m/s |
Ambient Temperature | -15°C to +80°C |
Pore with filter element | ≤ 50 μm |
Measuring connection DIN ISO 228 |
Upstream / downstream of filter element, both sides of housing: G1/4 sealing plugs (VS) |
Materials | Housing: Aluminium Cover seal: NBR Filter insert: Polypropylen fleece Filterholder: wire steel galvanized |
Installation Position | Any, preferred position: with cap vertical |
